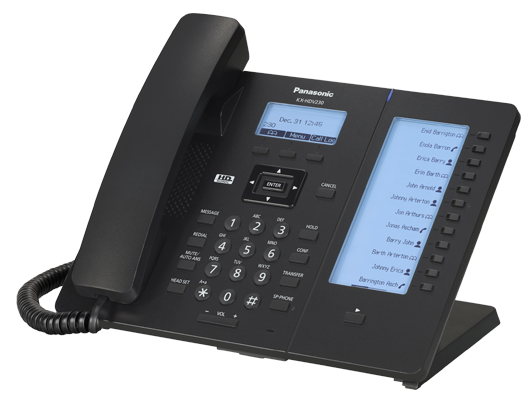

Panasonic KX-HDV230NEB
| Funkcijos | KX-HDV230 | |
| Display | LCD Display | Monochrome Graphical |
| LCD Size | 132 × 64 pixel 2.3 inch Graphical LCD | |
| LCD Contrast | 6 levels | |
| LCD Backlight | On/Auto/Off | |
| Install Options | Desk Mount Tilt | Yes – 2 positions |
| Wall Mount | KX-A440 (Included) | |
| Power Adaptor | KX-A422 (optional) | |
| Audio Features | Handset, Speaker, Headset Volume | 8 levels (includes echo cancellation and distortion prevention) |
| Ringtones | 27 | |
| Ringer Volume | 8 levels + Off | |
| Headset Port | RJ9 jack | |
| Electronic Hook Switch Control Port | 3.5 mm | |
| Built-in Bluetooth® | - | |
| Audio Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a | |
| HD Voice | Yes | |
| Speaker Phone | Yes (Full Duplex) | |
| Keys | Programmable Keys | 24 |
| Software Features | Phone Book (Local) | 500 |
| LDAP Remote Phonebook | Yes | |
| XML Remote Phonebook | Yes | |
| Call Log Entries | 30 incoming calls + 30 outgoing calls | |
| Conferencing | 3 parties (within terminal – multi-party dependent on server) | |
| XML Application | Yes | |
| Music on Hold | Supplied by Host Service (PBX / SIP Server) | |
| Memory | ||
| IP Features | SIP Accounts | 6 |
| SIP Compatibility | RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX | |
| IP Version | IPv6 / IPv4 | |
| DHCP Client | Yes | |
| DNS | Yes | |
| HTTP | Yes | |
| HTTPS | Yes | |
| SNTP Client | Yes | |
| VLAN (802.1q) | Yes | |
| QoS (DiffServ) | Yes | |
| Configuration | Plug and Play Configuration | Server based configuration, TR-069 |
| Manual Configuration | Internal web Configurator, Local (LCD based) network configuration | |
| Interface | Ethernet Ports | 2 |
| Ethernet Interface | 10/100/1000 Mbps | |
| PoE (Power over Ethernet) | Yes | |
| Bluetooth | - | |
| USB | ||
| SD Card Slot | ||
| Power Consumption | PoE | |
| Stand-by: | approx. 3.1 W (ECO mode off), 2.9 W (ECO mode on) | |
| Talking: | 3.2 W (ECO mode off), 3.0 W (ECO mode on) | |
| Max: | 4.2 W | |
| AC Adaptor | ||
| Stand-by: | approx. 2.8 W (ECO mode off), 2.1 W (ECO mode on) | |
| Talking: | 2.9 W (ECO mode off), 2.2 W (ECO mode on) | |
| Max: | 4.2 W | |
| Operating Environment | 0 °C - 40 °C (32 °F - 104 °F) | |
| Dimensions (Width x Depth x Height; handset on cradle, excluding the handset, stand attached) | High position: | 252 mm × 179 mm × 188 mm |
| Low position: | 252 mm × 187 mm × 154 mm | |
| Weight | (with handset,handset cord and stand) | 1030 g |
